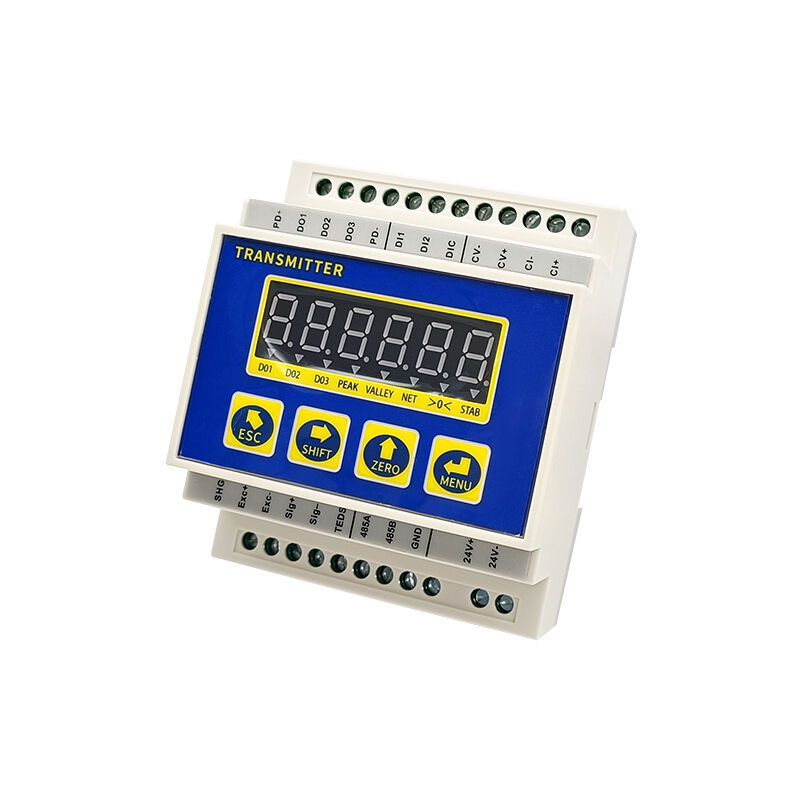

Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW

Name: Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: DT301PW
Price: 78.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: China

Merknaam: Brans

Modelnummer: DT301PW

Document: DT301PW Signal Transmitter-...NS.pdf

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 st

Levertijd: een week

Betalingscondities: T/T

Levering vermogen: 300 stks/maand

Krijg Beste Prijs

Productdetails

Productomschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high-precision weighing transmitter, multi-I/O batching transmitter, DT301PW weighing transmitter


Weergave:	6-cijferig LED-display, hoogte 0,32''	Schermresolutie:	100.000
Weegplatform:	1 pe analoog platform	Min. ingangsinterval:	0,6μV/d
Inputlading:	Aandrijving tot 1~4 loadcellen (350Ω)	Analoge uitgang:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communicatie poort:	RS-232, baudsnelheid 4800-115.200; RS-485, baudsnelheid 4800-115.200:	Com. protocol:	MODBUS-RTU, ga door met typen
A/D-conversiepercentage:	6-1600 Hz	Excitatie spanning:	5VDC
Voeding:	+24VDC(±10%), vermogen <3W	Toetsenbord:	4 aanraakknoppen
Bedrijfstemperatuurbereik:	-10°~40°C(14°~104F); Vochtigheid: 10% ~ 95%; niet-condenserend	Invoer/uitvoer:	2 ingangen en 3 uitgangen
Materiaal:	Plastic behuizing	IP -klasse:	IP20

Weergave:	6-cijferig LED-display, hoogte 0,32''
Schermresolutie:	100.000
Weegplatform:	1 pe analoog platform
Min. ingangsinterval:	0,6μV/d
Inputlading:	Aandrijving tot 1~4 loadcellen (350Ω)
Analoge uitgang:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Communicatie poort:	RS-232, baudsnelheid 4800-115.200; RS-485, baudsnelheid 4800-115.200:
Com. protocol:	MODBUS-RTU, ga door met typen
A/D-conversiepercentage:	6-1600 Hz
Excitatie spanning:	5VDC
Voeding:	+24VDC(±10%), vermogen <3W
Toetsenbord:	4 aanraakknoppen
Bedrijfstemperatuurbereik:	-10°~40°C(14°~104F); Vochtigheid: 10% ~ 95%; niet-condenserend
Invoer/uitvoer:	2 ingangen en 3 uitgangen
Materiaal:	Plastic behuizing
IP -klasse:	IP20

Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW

Features& Applications

- Standard 35mm DIN-rail mounting.
- Supports weight-free calibration for easy setup, operated via 4 touch buttons.
- Multiple analog outputs: 0–10V, ±10V, 4–20mA, 0–20mA, 0–10mA.
- Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol.
- Offers 2 inputs and 3 outputs for alarm or control functions (e.g., valves, gates).
- Powered by DC24V for stable and secure operation.
- High precision, strong stability, and excellent anti-interference performance.
- Ideal for high-precision weighing and batching systems.
- Suitable for multi-node weighing equipment with centralized installation.

Dimensions (mm)

Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW 0

Wiring Code

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
A shipping label containing your address and product information will be prominently affixed to the outer carton.
We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
